Revamping Real-Time Data Ingestion for Scalable Media Intelligence

Introduction

In the era of 24/7 media and constant digital noise, the ability to process and act on real-time information is crucial. For any system designed to monitor, classify, and enhance media content, scalable ingestion pipelines are the backbone. This blog outlines a re-engineered real-time ingestion pipeline that successfully scaled to handle over 8 million articles per day, demonstrating a shift from traditional ETL models to AI-augmented streaming architectures.

The Problem Space: High-Velocity Media Streams

Media monitoring platforms must absorb diverse content formats from countless providers and categorize them in near real time. Traditional monolithic systems or batch ETL jobs fail to meet such latency and reliability demands.

The challenge was to build a fault-tolerant, highly available, and intelligent ingestion architecture that:

• Ingests millions of articles daily.
• Categorizes them using robust matching rules.
• Enhances discoverability using semantic AI.

Solution: Microservices Architecture

We adopted a microservices architecture to ensure scalability, fault tolerance, and modularity. By breaking the pipeline into independent services, we improved maintainability and enabled seamless scaling based on workload.

To address these challenges, we adopted a microservices architecture, breaking down the data ingestion pipeline into three key services:

• Scheduler:  This service retrieves articles from the content provider and pushes them to a Kafka topic.
• Percolator: This service consumes articles from Kafka and maps them to relevant categories using Elasticsearch queries.
• Listener (AI Enabler): This service enriches articles with OpenAI embeddings for improved semantic search capabilities.

System Architecture

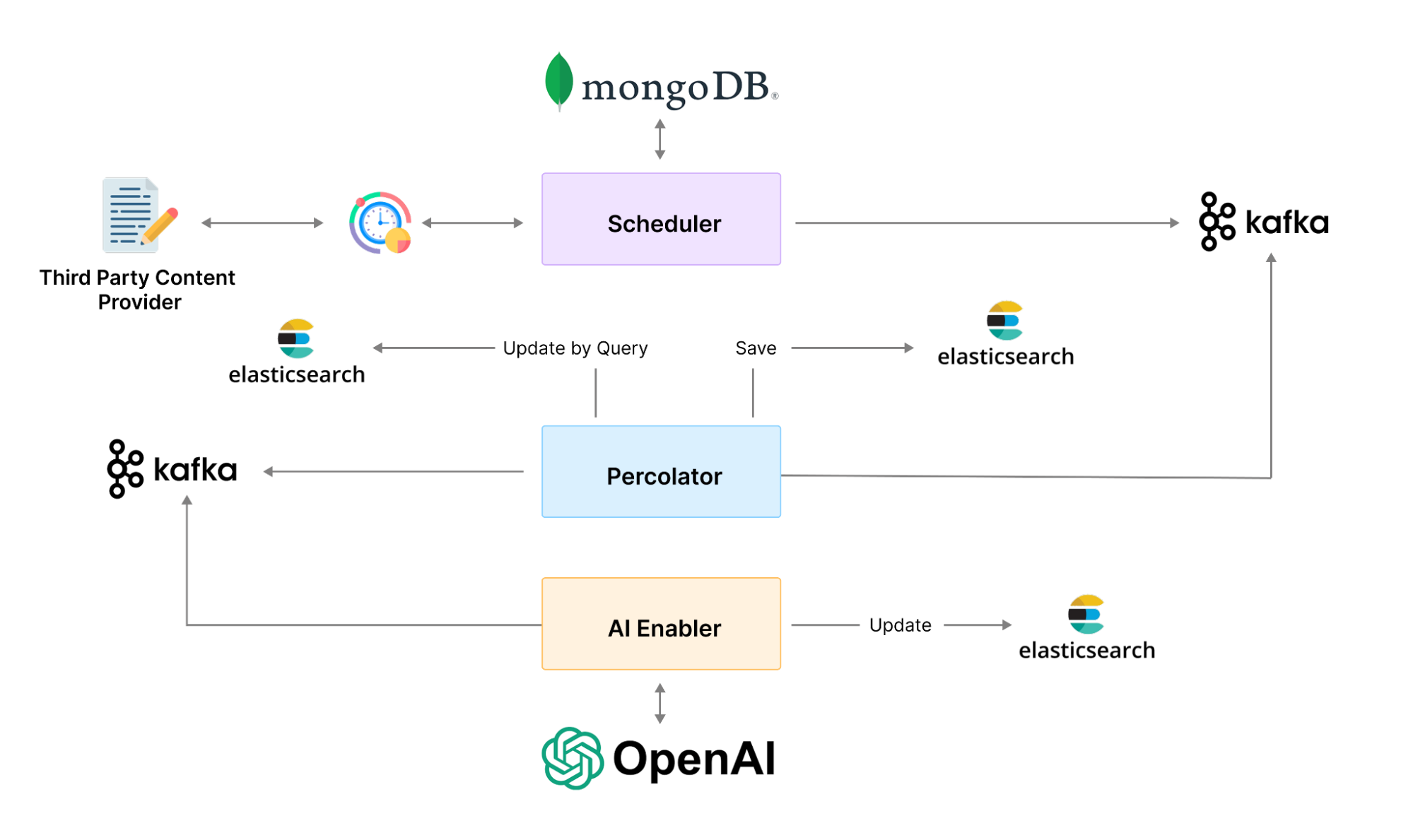

The following diagram illustrates the message flow from third-party providers through Kafka to the processing and enrichment stages.

High-level processing flow of incoming articles

1. Scheduler Service

The Scheduler service acts as the entry point for the data ingestion pipeline and is responsible for fetching articles from the content provider’s API at scheduled intervals. A key aspect of this service is its ability to handle batch processing and ensure that failed records are retried.

Key Functions

• Calls the Content Provider API at scheduled intervals (e.g., every 5 seconds).
• Receives articles in batches (e.g., 500 articles per batch).
• Persist raw data into MongoDB for temporary storage and auditability.
• Publishes the entire batch as a list to a Kafka topic (articles-topic).
• Implements retry mechanisms for articles that fail to complete the full pipeline processing.

Implementation Snippet

@Scheduled(fixedRate = 5000)

public void fetchArticles() {

    List<Article> articles = contentProviderClient.fetchArticles();

    articleRepository.saveAll(articles);

    kafkaTemplate.send(“articles-topic”, articles);

}

This code snippet demonstrates how the ‘@Scheduled’ annotation in Spring Boot is used to trigger the ‘fetchArticles’ method at a fixed rate. The method then fetches articles, saves them to MongoDB, and publishes them to Kafka.

2. Percolator Service – Real-Time Categorization

The Percolator service is the heart of the categorization process. It leverages Elasticsearch’s percolator functionality to map incoming articles to predefined categories based on Lucene Boolean queries.

Key Functions

• Consumes articles from the articles topic in Kafka.
• Saves transformed data to a temporary Elasticsearch index.
• Fetches category mapping rules, which are stored as Lucene Boolean strings in Elasticsearch.
• Executes the UpdateByQuery API in Elasticsearch to map articles to the appropriate categories.
• Retrieves the updated articles from the temporary index and moves them to the main article index.
• Clears the temporary indices post-processing to maintain efficiency.
• Publishes the processed articles to another Kafka topic (processed-articles-topic) for further AI-based enrichment.

Implementation Snippet

public void processArticles(List<Article> articles) {

    saveToElasticsearchTempIndex(articles);

    List<String> categories = fetchCategoryMappings(articles);

    updateArticlesWithCategories(articles, categories);

    moveArticlesToMainIndex(articles);

    kafkaTemplate.send(“processed-articles-topic”, articles);

}

This code snippet outlines the core steps in processing articles within the Percolator service. It saves articles to a temporary index, fetches category mappings, updates articles with categories, moves them to the main index, and publishes them to Kafka.

3. Listener (AI Enabler) Service – Semantic Enrichment

The Listener service enhances the articles with semantic embeddings using OpenAI, enabling more sophisticated search capabilities.

Key Functions

• Consumes articles from the processed-articles-topic in Kafka.
• Generates semantic embeddings for each article using OpenAI’s API, but only if the article meets specific criteria (e.g., minimum length, specific keywords).
• Updates the Elasticsearch index with the generated embeddings.
• Tracks AI enrichment by updating the processing status in MongoDB.

Implementation Snippet

public void processAIEnhancements(Article article) {

    if (shouldGenerateEmbedding(article)) {

        String embedding = openAiClient.generateEmbedding(article.getContent());

        elasticsearchClient.updateEmbedding(article.getId(), embedding);

        articleRepository.updateStatus(article.getId(), “AI Enhanced”);

    }

}

This snippet shows how the Listener service conditionally generates embeddings for articles using OpenAI, updates Elasticsearch with these embeddings, and updates the article’s status in MongoDB.

Technology Stack

• Spring Boot:  Building microservices with ease and efficiency.
• Kafka: Real-time data streaming and decoupling the services.
• MongoDB: Storing raw articles temporarily and tracking the processing status.
• Elasticsearch 8.x:  Indexing articles, storing category mappings, and performing percolator queries.
• OpenAI Embeddings: Generating semantic embeddings to enhance search capabilities.

Outcomes and Impact

The new real-time data ingestion pipeline has delivered significant improvements:

Scalability: The system now ingests 8.64 million articles per day, a substantial increase compared to the previous system.

Reliability:  The retry mechanisms ensure that articles are processed fully, even in the face of transient errors.

Searchability: Articles are accurately mapped to multiple categories, improving content discoverability.

AI-Driven Discovery: OpenAI embeddings significantly enhance semantic search, allowing users to find relevant articles based on meaning, not just keywords.

Final Thoughts: Intelligent Pipelines for Real-Time Insight

This case study demonstrates how a well-designed microservices architecture, combined with the right technologies like Spring Boot, Kafka, and Elasticsearch, can enable real-time content ingestion and classification at scale. AI-powered semantic embeddings further enhance the value of the ingested data, making it a powerful asset for media monitoring and PR analysis. This approach delivers a robust, scalable, and intelligent content processing pipeline, enabling modern media organizations to maintain a competitive edge in an era of constant information overload.
